    PVC Jacket IDC Flat Ribbon Cable 1000 MΩ Insulation Resistance 1 Amp Rated Current

    Ask Lasest Price
    Brand Name : KBTech
    Model Number : IDC Parallel printer Cable
    Certification : ROHS ,CE,UL
    Price : Ask for lasted price
    Payment Terms : T/T, Western Union,Paypal, MoneyGram
    Supply Ability : 5000pcs per week
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    PVC Jacket IDC Flat Ribbon Cable 1000 MΩ Insulation Resistance 1 Amp Rated Current

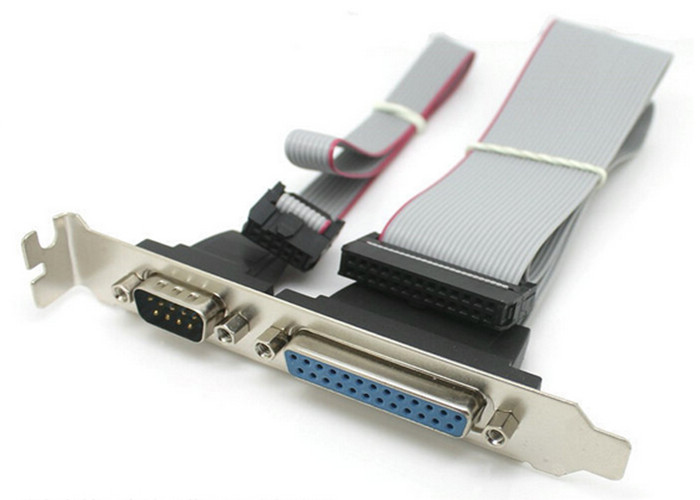

    Mount panel DB25 and DB9 with bracket to IDC 10PIN and 26PIN
    Flat Ribbon parallel printer cable

    Description:
    ---IDC ribbon cable
    ---Rainbow wires
    ---IDC socket: 2.0mm or 2.54mm
    ---IDC two-piece or three piece with flat cable.

    ---Flat cable can be with red edge and also can be 1.0mm or 1.27piych.
    ---Can be made all kinds of IDC flat cable by customer requirements.

    Product Name:Mount panel DB25 and DB9 with bracket to IDC 10PIN and 26PIN cable
    Connector on First End: D-SUB 25PIN female and 9pin male
    Connector other End: IDC 26PIN Female and 10pin female
    Cable Length: 20CM or custom
    Color: Black,Beige
    Gender: M/M
    Molding Type: PVC mouled or ABS Assembly
    Green Compliant: Yes
    Compatibility: POS System ,Printer, PDA and Mondem

    Feature
    Wire Molde : UL2678 , UL2651, UL2651
    Cable Pitch Range: 0.4mm,0.635mm, 1.0mm, 1.27mm
    Connector pitch range: 0.8mm,1.27mm, 2.0mm, 2.54mm
    Conductor range: 24-30AWG
    Connector Pins:6~40P,6~50P, 6~64P
    Cable Color:Grey with red edge or Grey with Blue edge or black with white edge
    Connector color:Usually black, grey & red
    Cable length:10cm, 15cm,30cm or cusomized
    Applications:Computer/Desktop data transfer, Power transfer, Electronics, Communication data transfer
    Terminals: bronze and phosphor bronze
    Connector: Gold-plated /nickel-plated
    Rated Current:1Amp
    maximum voltage: AC 500V / 1Minute
    Insulation resistance:1000mΩ
    Contact resistance: 15mΩ
    Operating Temperature: -40 ° C ~ + 105 ° C

    CABLE CONSTRUCTION


    CONDUCTOR


    INSULATION


    MAX.COND.
    RESISTANCE (Ω/km,20,DC)


    AWG

    *
    PITCH*
    (mm


    CONSTR-
    UCTION
    (No./mm)


    DIA.
    (mm)


    (No.)


    INSULATION
    THICKNESS
    (mm)


    O.D.
    (mm)

    281.277/0.1270.3820.270.92×2.54239
    30.270.92×3.81
    40.270.92×5.08
    50.270.92×6.35
    60.270.92×7.62
    70.270.92×8.89
    80.270.92×10.16
    90.270.92×11.43
    100.270.92×12.70
    110.270.92×13.97
    120.270.92×15.24
    130.270.92×16.51
    140.270.92×17.78
